Smart prepaid and mechanical gas meters

Smart prepaid and mechanical gas meters, certified by international laboratories to EN standards.

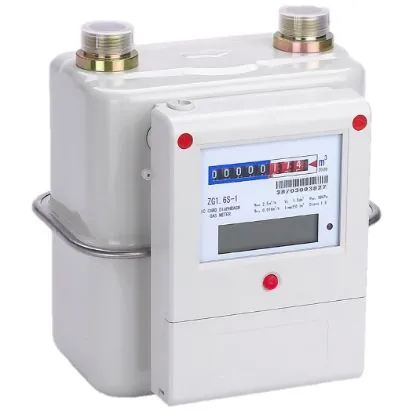

QE-G-2.5

Smart prepaid gas meter

EN 1359EN 16314ATEXIP65

NFC card with remote recharge through the myQuill App
Built-in valve rated for more than 10,000 operations
Plug-and-play GPRS 4G, LoRa or RF module
Prepaid or postpaid, switchable in operation
Anti-tamper detection and alarm
Managed in the QE-SYS-2.0 AMI system

Technical specifications

Standards	EN 1359, EN 16314
Explosion protection	ATEX II 3 G Ex ic IIA T3 Gc
Communication	NFC card, RS485; GPRS optional
Max operating pressure	50 kPa (500 mbar)
Pressure loss	< 250 Pa
Operating temperature	−10 °C to +40 °C
Power	3.6 V lithium battery
Protection	IP65

Request datasheet & quotation

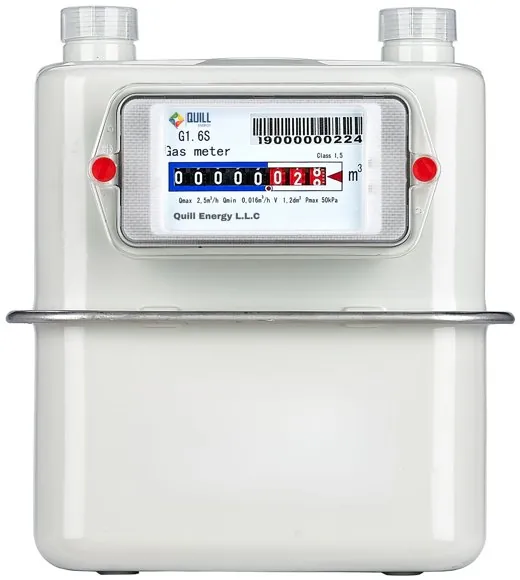

QE-G-XX

Mechanical gas meter

MechanicalEN 1359G1.6–G10Class 1.5

Proven mechanical measurement for residential and small commercial connections
Clear roller-counter register in m³
Durable painted steel casing with sealed index window
No battery or power supply required

Technical specifications

Certification	EN 1359
Sizes	G1.6, G2.5, G4, G6, G10
Maximum pressure	50 kPa (500 mbar)
Accuracy class	1.5

Size	G1.6	G2.5	G4	G6	G10
Qmax (m³/h)	2.5	4	6	10	16
Qmin (m³/h)	0.016	0.025	0.040	0.060	0.100
Cyclic volume (dm³)	1.2	1.2	1.2	2.0	6.0
Maximum pressure (kPa)	50	50	50	50	50
Accuracy class	1.5	1.5	1.5	1.5	1.5

Request datasheet & quotation

Gas meters

Smart prepaid and mechanical gas meters to EN 1359.

The QE-G-2.5 smart prepaid gas meter combines an NFC card, a built-in valve and optional GPRS for remote recharge, and is ATEX certified for safe installation in homes and commercial units. For conventional connections, the QE-G-XX mechanical diaphragm gas meter covers sizes G1.6 to G10, certified to EN 1359.

Quill is an EGAS-approved supplier, and both meters are managed in the QE-SYS-2.0 AMI system alongside electricity, water and BTU meters.
