Smart and prepaid water meters

LoRaWAN and ultrasonic smart water meters, MID certified, with optional prepaid card and remote valve control.

QE-WL-XX

LoRaWAN prepaid smart water meter

LoRaWANSTSMIDIP68

Two-way LoRa communication, 300+ meters per concentrator
Remote reading, control and configuration
Backup IC card if the network is interrupted
Leak and network monitoring with alerts
Prepaid or postpaid, switchable in operation
myQuill App top-up and monitoring

Technical specifications

Certification	MID, OIML R49
Accuracy class	Class 1 / Class 2
Permanent flow Q3	2.5 m³/h
Overload flow Q4	3.125 m³/h
Q3/Q1 ratio	250
Max working pressure	16 bar
Pressure loss	0.63 bar
Protection	IP68, fully submersible

Request datasheet & quotation

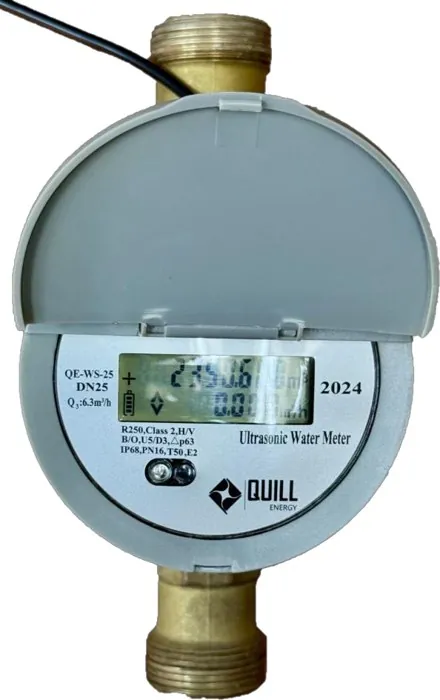

QE-WS-XX

Ultrasonic smart water meter

UltrasonicRS485 / 4GMIDIP68DN 15–50

Ultrasonic measurement with low starting flow and R400 dynamic range
Wired RS485 up to 100 m, with 4G through the RS485-4G module where there is no coverage
Optional prepaid IC card
Optional control valve and non-return valve
Leak detection with smart data error correction
Tamper alerts: cover, magnetic field, bypass, low battery, valve fault
Bi-directional flow measurement, horizontal or vertical installation
Ready for the QE-SYS-2.0 AMI system

Technical specifications

Certification	MID
Diameter range	DN 15–50
Pressure class	MAP 16
Water temperature	0–30 °C
Installation	Horizontal or vertical
Ambient / EMC class	Class O / E1
Communication	Optical port; RS485 (wired up to 100 m); 4G via RS485-4G module
Protection	IP68 electronics, UV-resistant compact housing
Battery	Lithium, replaceable locally

DN	15	20	25	32	40	50
Q3 permanent flow (m³/h)	2.5	4.0	6.3	10	16	25
Q2 transitional flow (m³/h)	0.010	0.016	0.025	0.040	0.064	0.160
Q1 minimum flow (m³/h)	0.006	0.010	0.016	0.025	0.040	0.1
Thread (G)	3/4	1	1 1/4	1 1/2	2	2 1/2
Meter length (mm)	165	175	180	195	200	200

Request datasheet & quotation

Water meters

Smart and prepaid water meters with remote reading.

Quill’s water meter range covers LoRaWAN prepaid smart water meters (QE-WL-XX) and ultrasonic smart water meters (QE-WS-XX, DN 15 to DN 50). Both are MID certified and IP68 rated for residential compounds, commercial buildings and municipal water networks.

Remote reading, leak detection and tamper alerts help operators cut non-revenue water, while the optional prepaid IC card and control valve let them collect in advance and manage supply remotely through QE-SYS-2.0.
